CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 911 Turbo running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
The CSF 911 Turbo radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.
FEATURES:
2-Row 42mm Core Featuring CSF's Exclusive B-Tube Technology (+20% Efficiency)
6.5mm Fin Height w/ Multi-Louvered Design for Maximum Surface Area Contact
Individually Leak and Pressure Tested
All-Aluminum Design with 100% TIG-Welded End Tanks
CNC Machined Brackets and Fittings for Superb Fit and Durability
OEM-Style Machined Inlet/Outlet Connections
Smooth Satin Finish
Plug-and-Play "Drop-in" Fit with No Modifications Required for Installation
Accepts OEM AC Condenser and Fan Shroud
High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
APPLICATIONS:
Year Range Make Chassis Code Model Trim Engine / Trans / Etc Notes
2018-2019 Porsche 991.2 911 GT2 RS Turbocharged 3.8L H6 -
2014-2016 Porsche 991.1 911 GT3 3.8L H6 -
2016 Porsche 991.1 911 GT3 RS 4.0L H6 -
2016 Porsche 991.1 911 R 4.0L H6 -
2019 Porsche 991.2 911 Speedster 4.0L H6 -
2013-2016 Porsche 991.1 911 Turbo Turbocharged 3.8L H6 -
2017-2019 Porsche 991.2 911 Turbo Turbocharged 3.8L H6 -
2013-2016 Porsche 991.1 911 Turbo S Turbocharged 3.8L H6 -
2017-2019 Porsche 991.2 911 Turbo S Turbocharged 3.8L H6 -
2016 Porsche 981 Boxster Spyder 3.8L H6 -
2016 Porsche 981 Cayman GT4 3.8L H6 -
2020-2024 Porsche 982 718 Cayman GT4 4.0L H6 -
2022-2025 Porsche 982 718 Cayman GT4 RS 4.0L H6 -
2021-2025 Porsche 982 718 Cayman GTS 4.0 4.0L H6 See Fitments Notes
2021-2022 Porsche 982 718 Boxster 25 Years 4.0L H6 -
2021-2025 Porsche 982 718 Boxster GTS 4.0 4.0L H6 See Fitments Notes
2020-2024 Porsche 982 718 Spyder - 4.0L H6 -
2024-2025 Porsche 982 718 Spyder RS 4.0L H6 -
FITMENT NOTES:

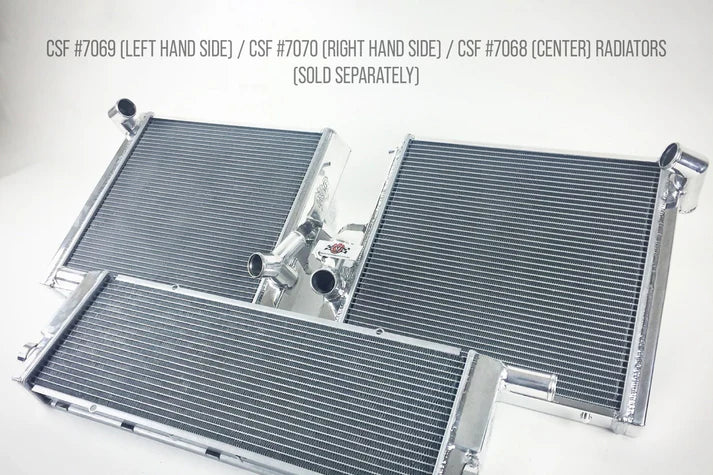

Verify Fitment with VIN. Some GTS 4.0 Models used CSF #7068 (OE: 991-106-138-02) and some use CSF #7060 (OE: 991-106-137-02).
OEM PART NUMBERS:
Porsche: 991 106 138 02
Porsche: 991-106-138-02
Porsche: 99110613802
Porsche: 991 106 138 01
Porsche: 991-106-138-01
Porsche: 99110613801
Porsche: 991 106 038 90
Porsche: 991-106-038-90
Porsche: 99110603890
